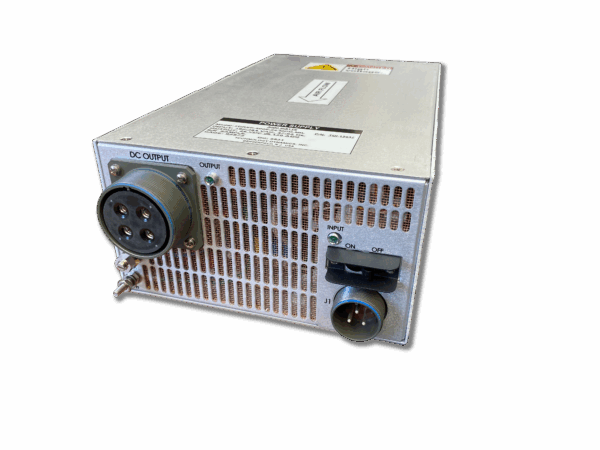

AC-DC Switching Power Supply, 3000 Watts, TDHV-3000 SERIES
- Input and Output Good indicators
- Internal EMI Filtering
- Forced air cooling, Internal fan
- Compact size
- High Power Density
- Rugged Construction
- OV, OL, OT protection
- Description
- Models
- Specifications
- Available Options
- Data Sheets
Description
The TDHVP-3000 series of Power Factor Corrected AC-DC power supplies provides highly regulated output power to 3000-watts. Rugged construction and superior quality make this power supply ideal for harsh environment applications. Available in standard, modified, or fully custom configurations, for industrial, commercial, COTS ruggedized and Military applications. Contact us for a free price quote.
| Model # | Output Voltage | Max. Current | |
|---|---|---|---|
| TDHV-3000-270 | 270 | 12 | QUOTE |
Other voltage and current combinations are available, contact us for your exact needs.
INPUT SPECIFICATIONS:
Input: 115/200, 3Φ, 400Hz
Inrush Current: 50A max
Input Current: 11A per phase
Efficiency: 86% typical
Hold-up Time: 16ms at full load (minimum)
Leakage Current: <6.0mA maximum at 115V L-N
Harmonics: THD 5% max
OUTPUT SPECIFICATIONS:
Minimum Load: none
Regulation: Line: +1%, Load: +1%
Ripple / Noise: +1%
Output Voltage Adj: +1V
Overcurrent Protection: 105-125% automatic recovery Constant Current
Overvoltage Protection: 115-140% of V1 nominal
Overtemperature Protection: Heatsink Temp. 90°C +5°C Auto Recovery
ENVIRONMENTAL SPECIFICATIONS:
Operating Temperature: -35°C to +70°C. Derate to 50% at +70°C
Storage Temperature: -40°C to +85°C max 95% Relative Humidity
Cooling: Internal ball bearing DC fan
Humidity: 20-90% RH non-condensing
Vibration: 10-500Hz, 2G 10min/cycle for 60 min (3 axes)
Shock: 20G Peak Acceleration
Weight: Approx. 18 LBS
- ORing Diode for Redundant Operation
- Ruggedized for shock & vibration
- Conformal Coated
- Compliance to MIL-STD-704
